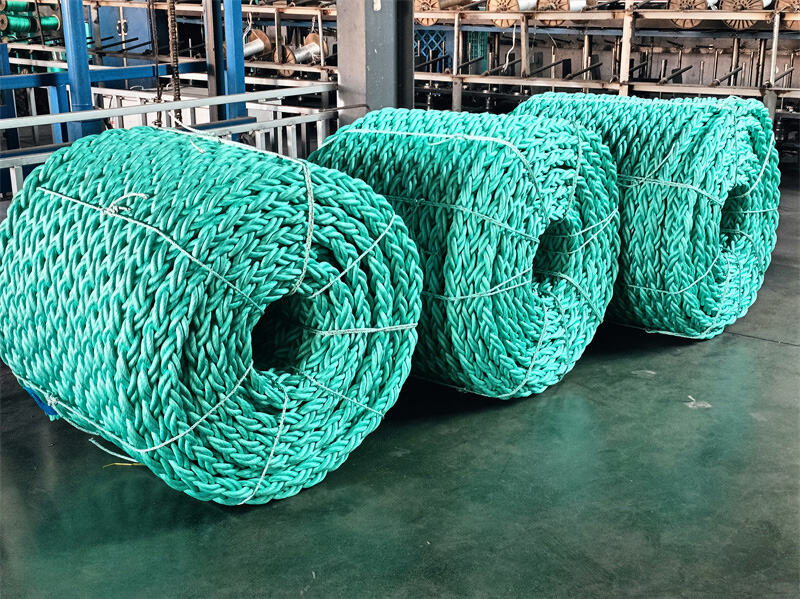

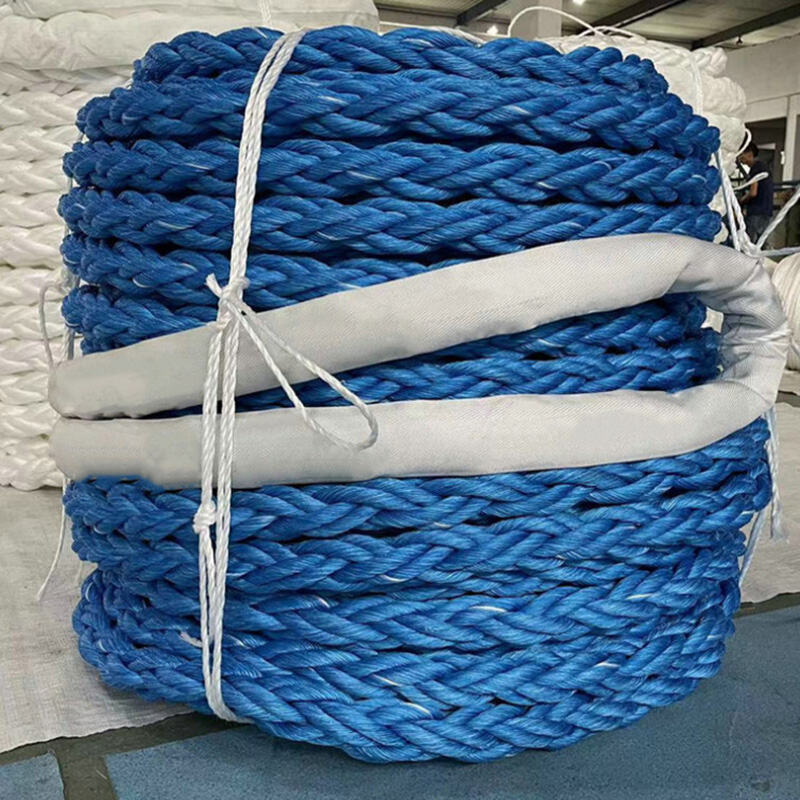

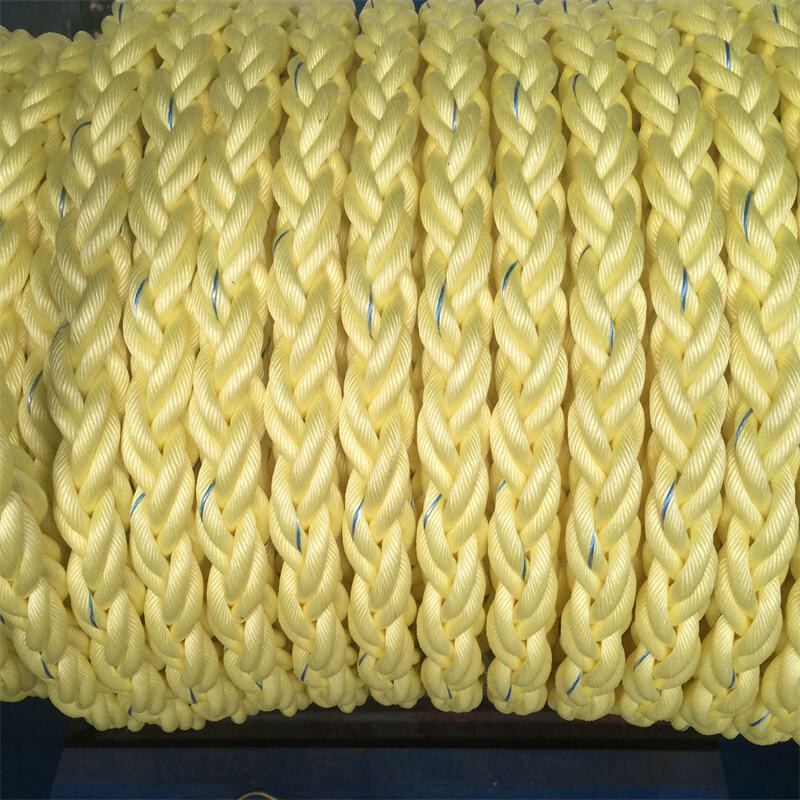

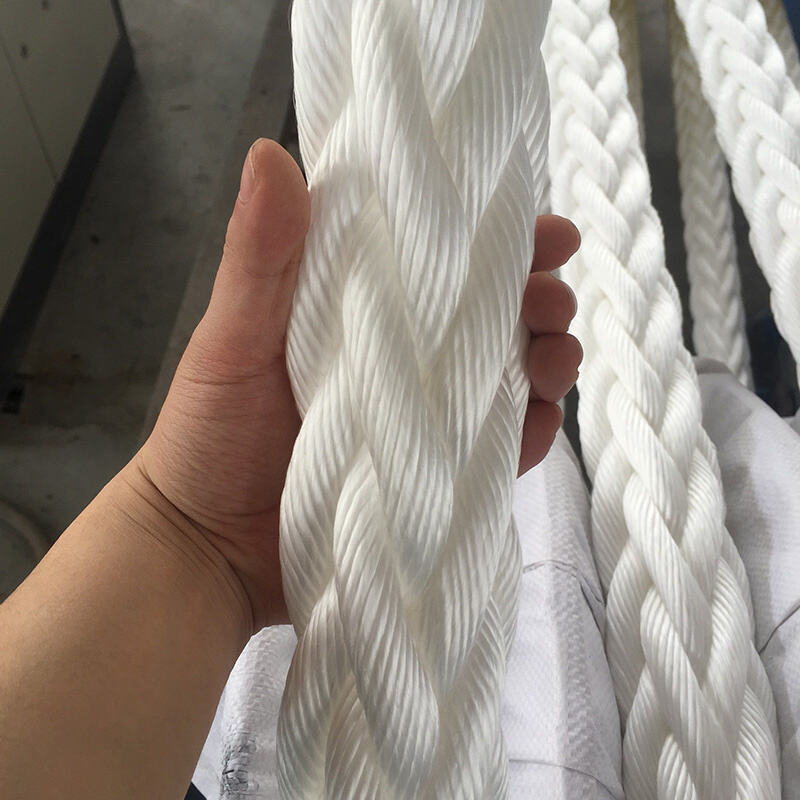

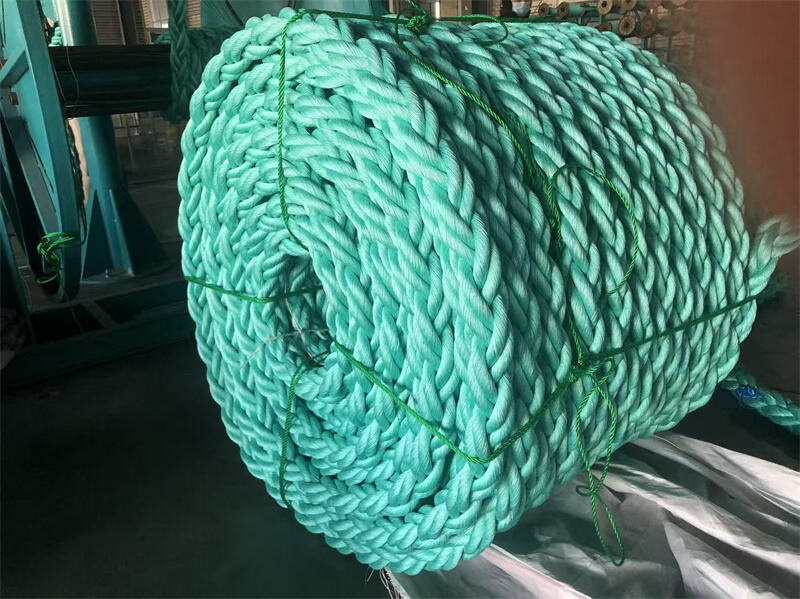

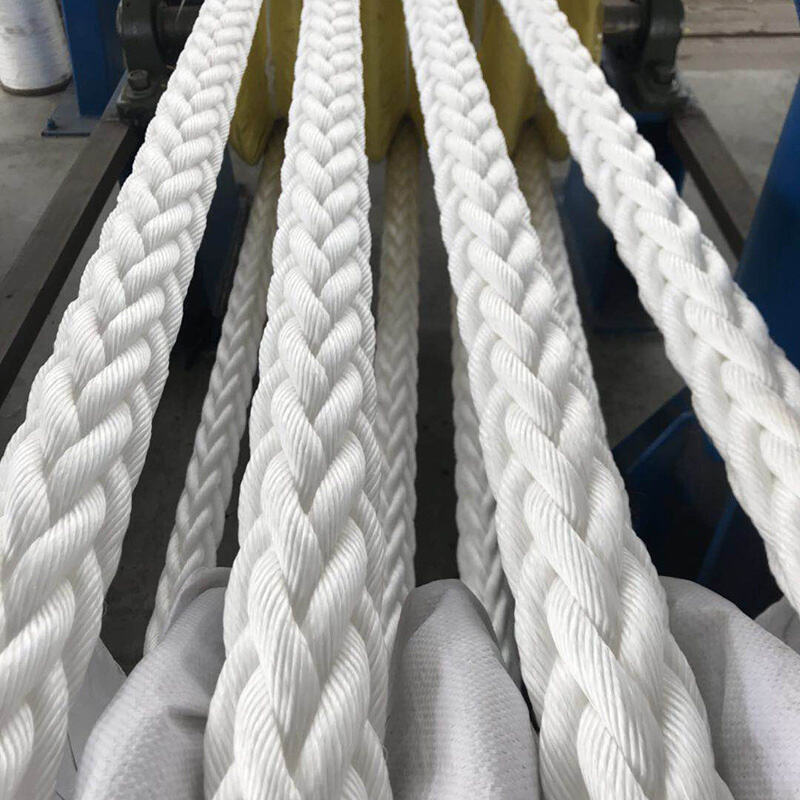

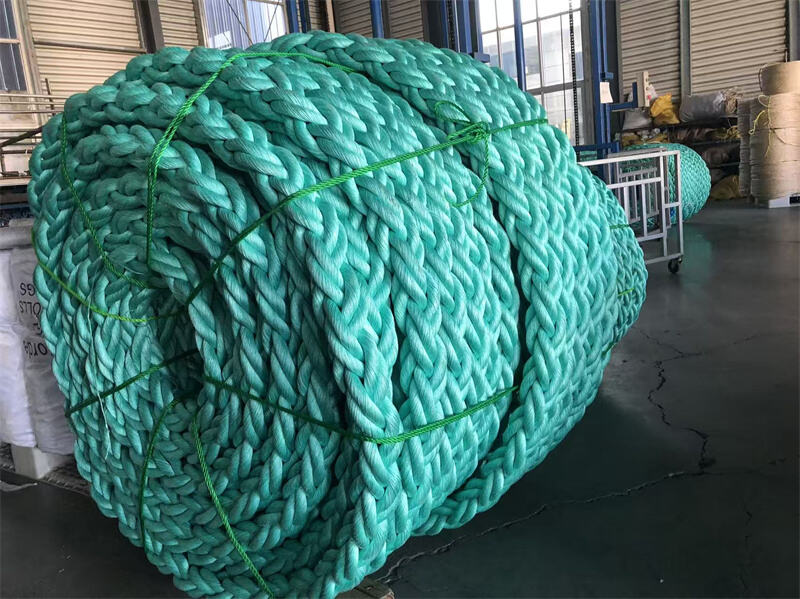

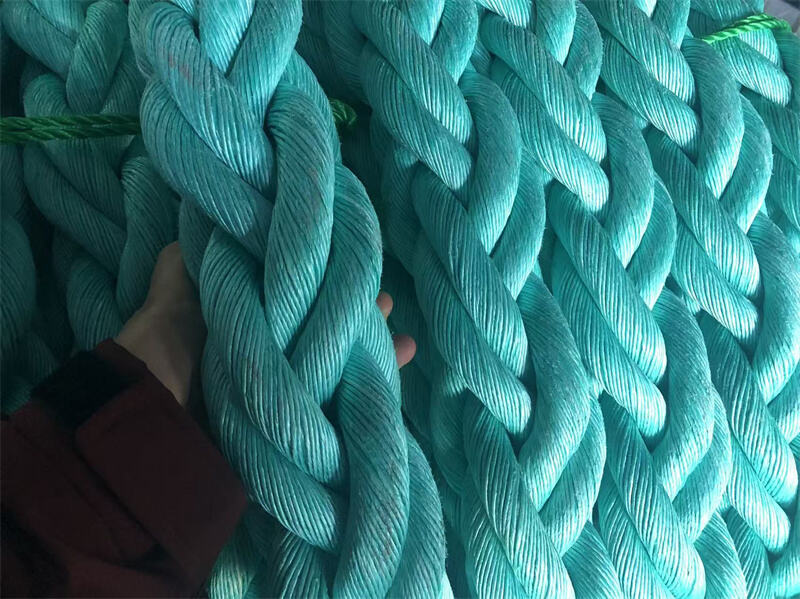

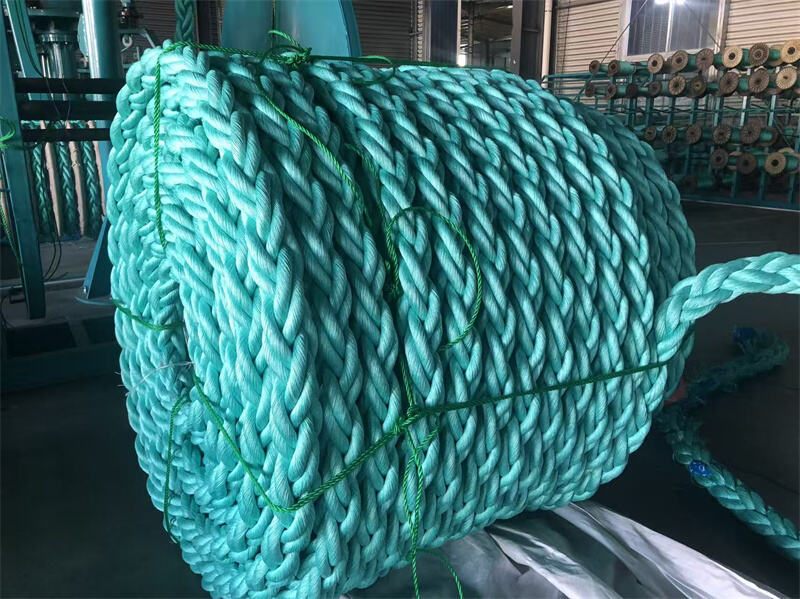

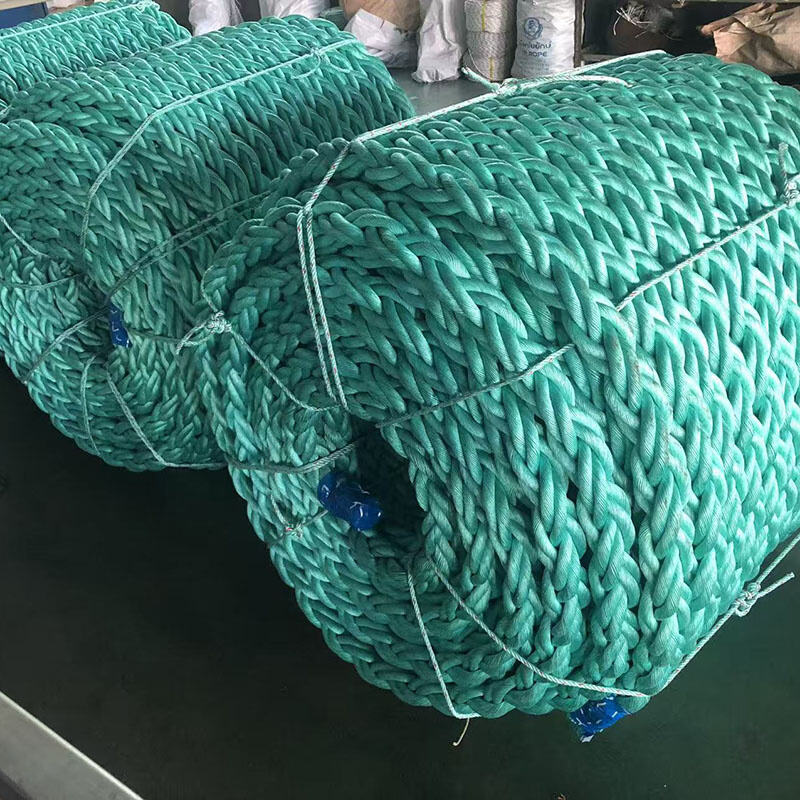

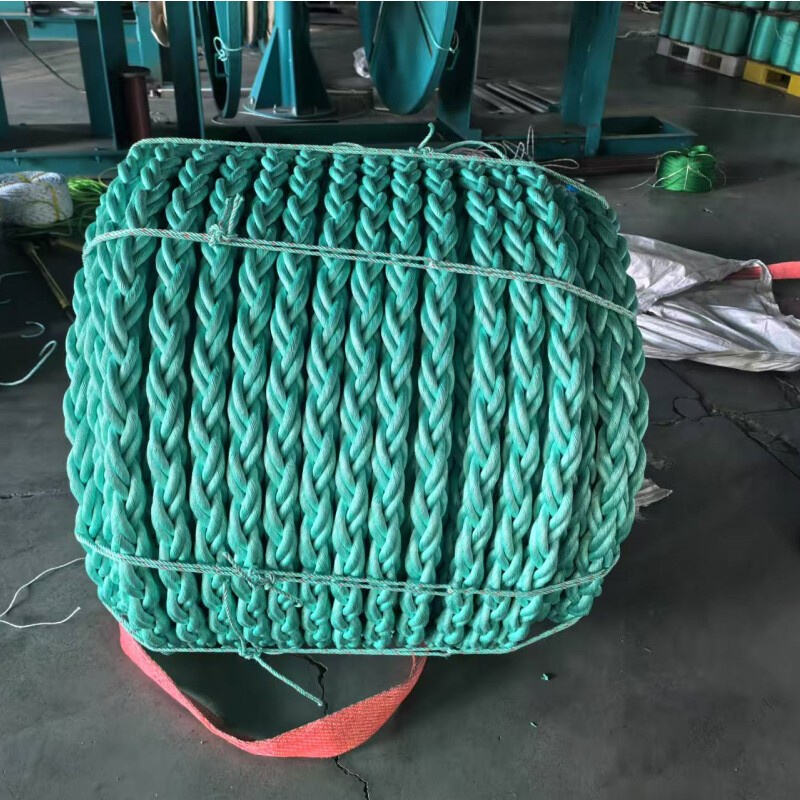

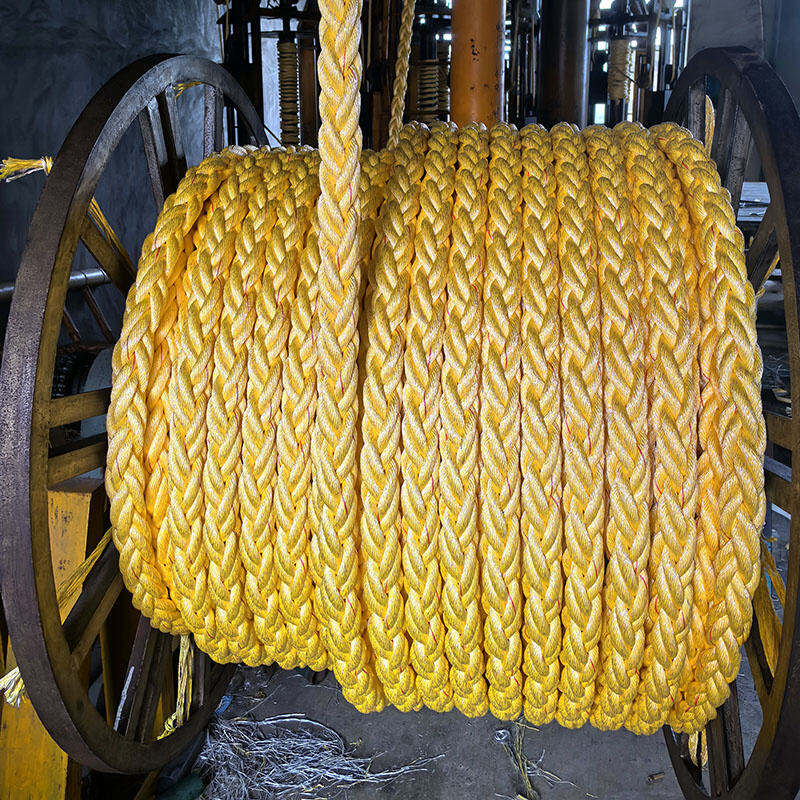

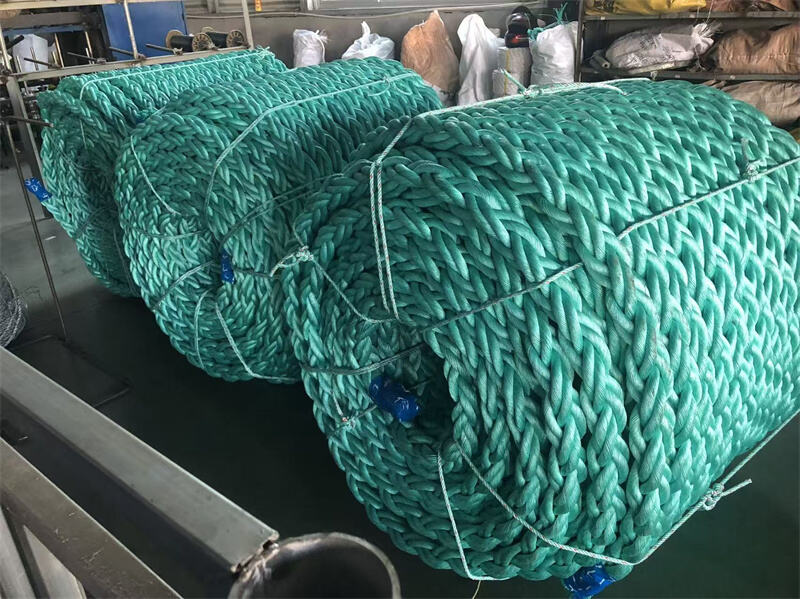

Polypropylene Rope

• Size: 40mm-160mm

• Length: 100m, 220m or customized

• Material: polypropylene monofilament fiber

• Color: white or color

• Certificate: BV, CCS, DNV, ABS, etc.

• Density: 0.91g/cm³

• Melting point: 165℃

• Elongation: 15-18%

• Abrasion resistance: good

• UV resistance: good

• Chemical resistance: good

Product Parameters

Certification:

BV, DNV, CCS, LR, KR, ABS

Description

Polypropylene monofilament rope is the most conventional economical for the marine field. This light rope is stronger than a comparable manila rope, is non water absorbent, non slipping and provides good flexibility and high durability And it has excellent resistance to most common chemicals. It is also resistant to rot, mildew and deterioration. It has UV resistance, good strength, and moderate stretch.

Applications

Mooring, towing, marine fishing, marine aquaculture, cargo lashing, signal ropes, hoisting, rigging, general purpose use.

Specifications

Size		Weight		MBL(Unspliced)		LDBF(Spliced)
Dia.mm	Cir.inch	g/m	kgs/220m	kN	ton	kN	ton
40	5	720	158.4	205	20.92	185	18.8
44	5-1/2	880	193.6	246	25.1	221	22.6
48	6	1040	228.8	286	29.18	257	26.3
52	6-1/2	1220	268.4	331	33.78	298	30.4
56	7	1420	312.4	378	38.57	340	34.7
60	7-1/2	1630	358.6	433	44.18	390	39.8
64	8	1850	407	490	50	441	45.0
72	9	2340	514.8	615	62.76	554	56.5
80	10	2900	638	756	77.14	680	69.4
88	11	3510	772.2	907	92.55	816	83.3
96	12	4170	917.4	1071	109.29	964	98.4
104	13	4900	1078	1228	125.3	1105	112.8
112	14	5700	1254	1418	144.69	1276	130.2
120	15	6500	1430	1628	166.12	1465	149.5
128	16	7400	1628	1838	187.55	1654	168.8
136	17	8400	1848	2069	211.12	1862	190.0
144	18	9400	2068	2309	235.61	2078	212.1
160	20	11521	2534.62	2829	288.67	2546	259.8
