UHMWPE Mooring Rope

• Size: 6mm-150mm

• Length: 100m, 220m or customized

• Material: high strength UHMWPE Fiber

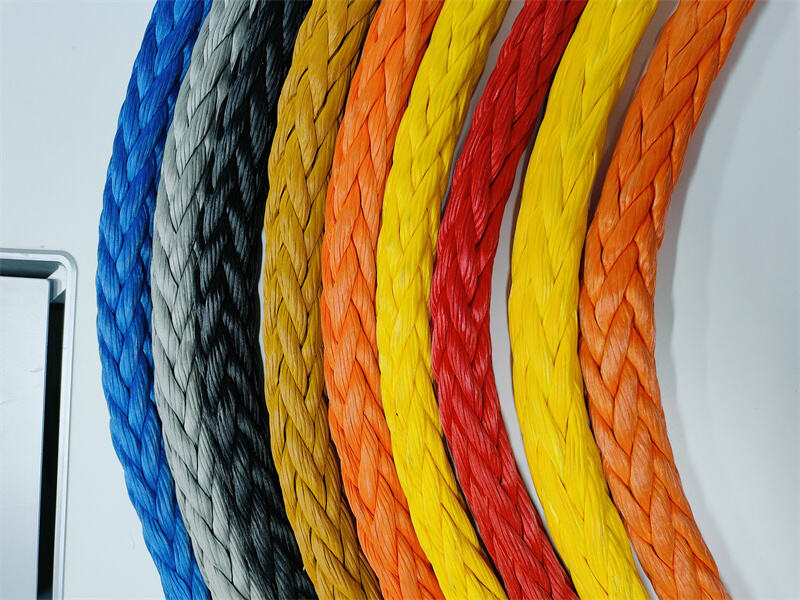

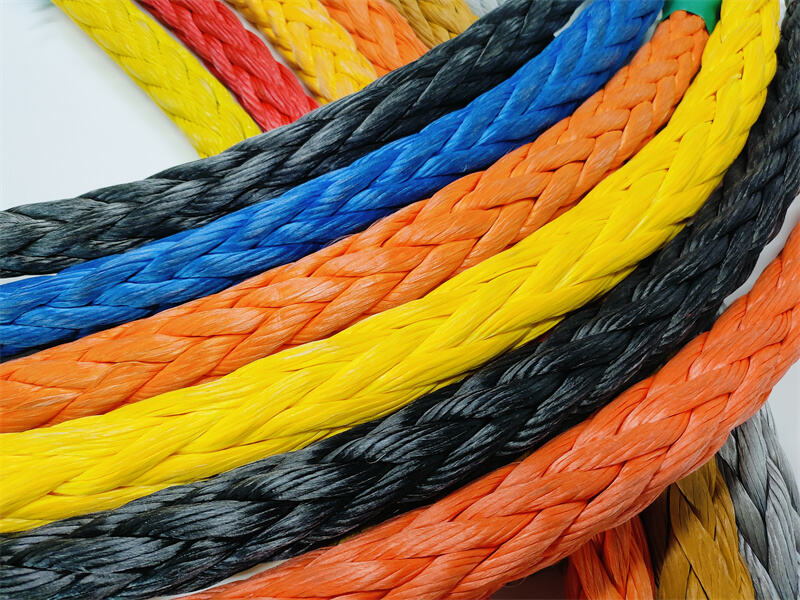

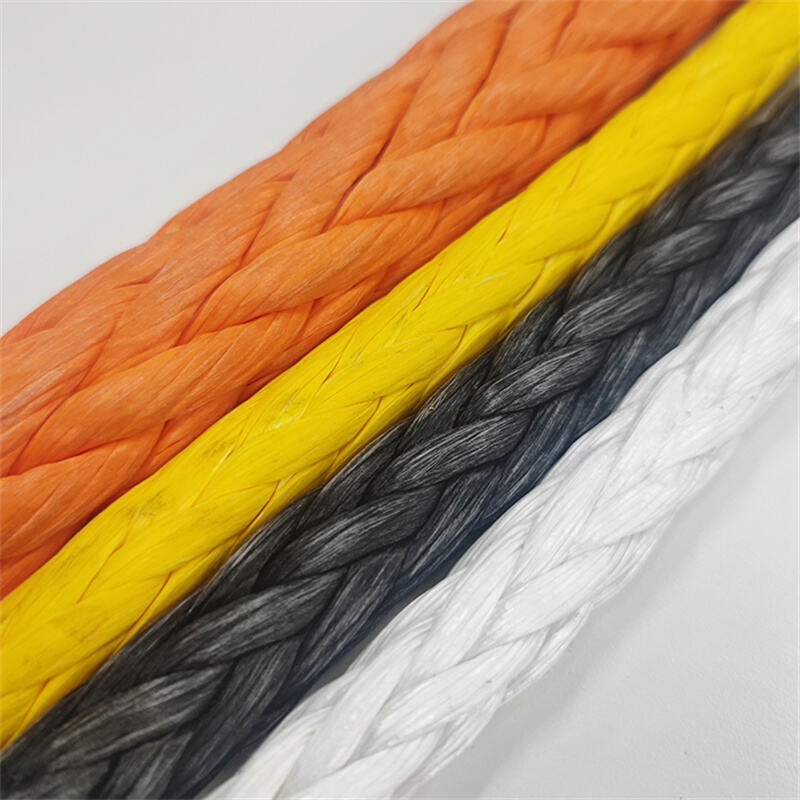

• Color: orange, yellow, grey or customized

• Certificate: BV, CCS, DNV, ABS, etc.

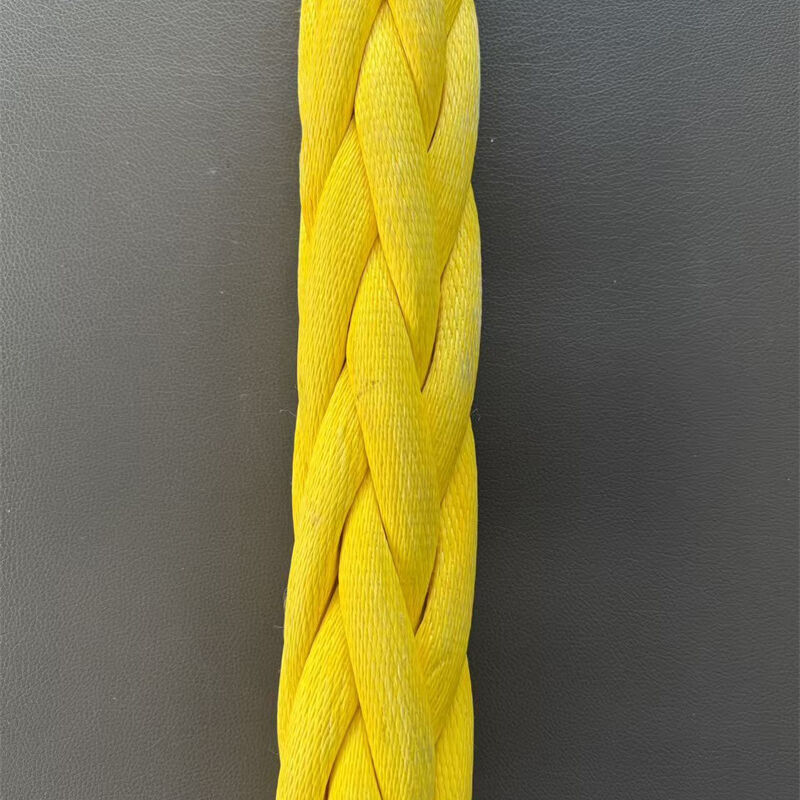

• Structure: 12 strand

• Density: 0.97g/cm³

• Melting point: 140℃

• Elongation: 3.5%

• Abrasion resistance: excellent

• UV resistance: excellent

Product Parameters

Certification:

BV, DNV, CCS, ABS, ISO, CE

Description

UHMWPE mooring rope is a dyneema rope equivalent. It is produced by ultra-high molecular weight polyethylene fiber and high technology. The rope has high strength, lightweight, and low elongation.

A same diameter of UHMWPE rope is stronger than steel wire rope. At the same time, it has only 1/8 of steel wire rope’s weight which resulting more efficiency and easy handling during heaving load operation.

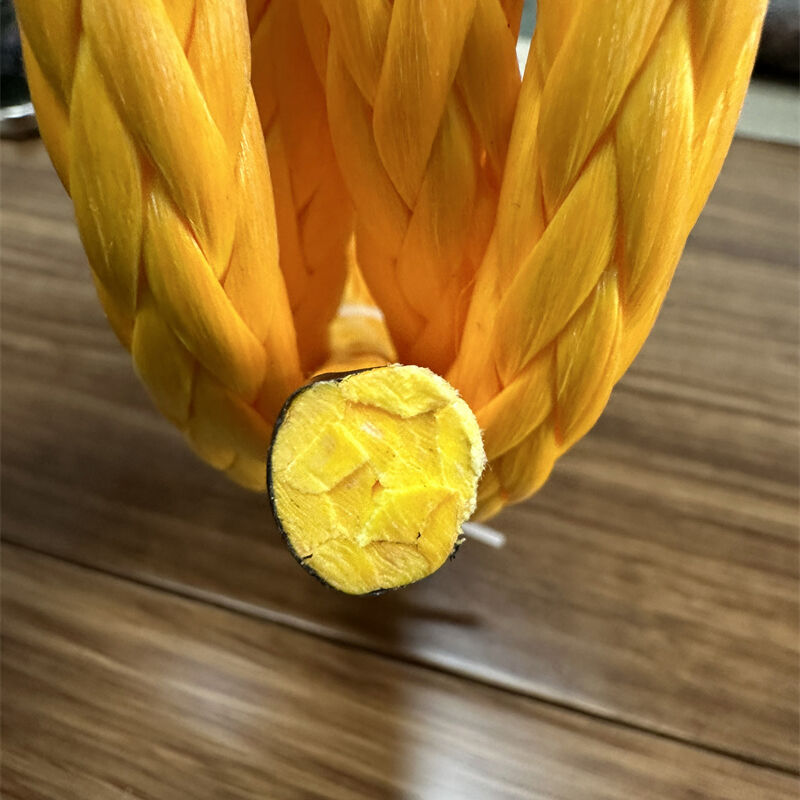

Because the structure of the rope is woven, not twisted, it will not rotate when loaded. More over, the hmpe rope is soft and easy to handle. When rolled into a small coil, it will not be kinked like a wire rope.

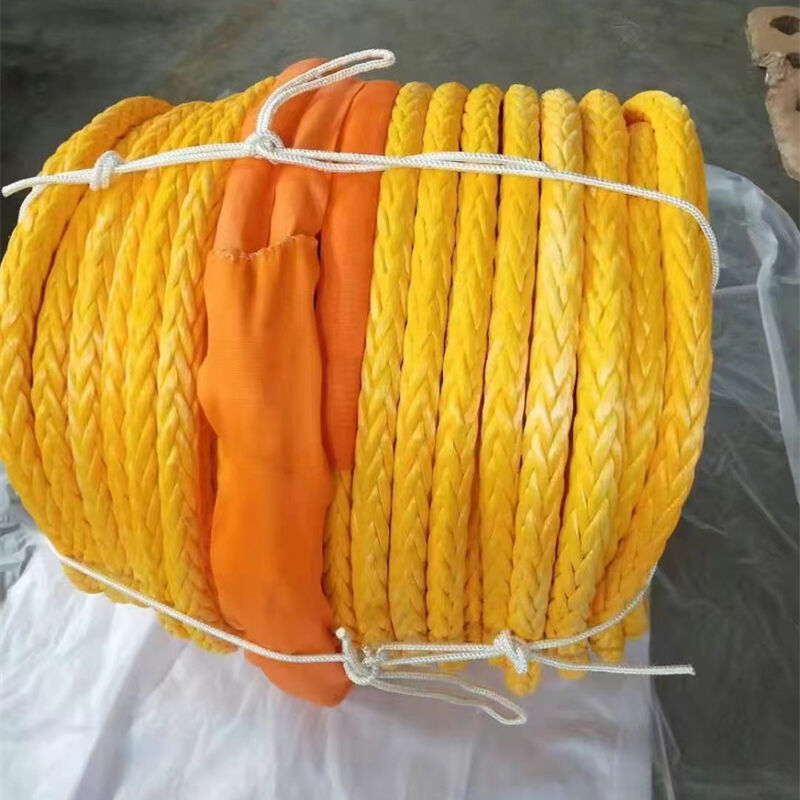

UHMWPE mooring rope comes with special coating on the surface to enhance UV resistance and breaking strength. The resin treatment will help the rope deal with the offshore’s harsh environment more easy. Besides, both end spliced eye with extra protective sleeve will improve the wear-resistant capacity, ensuring the rope ready to serve for mooring upon delivery.

Applications

Port towing, mooring system for ultra large container ships, army&navy equipment, offshore, aerospace, sport equipment, electrical communications, large precision object sling, etc.

Specifications

Size		Weight		MBL(Unspliced)		LDBF(Spliced)
Dia.mm	Cir.inch	g/m	kgs/220m	kN	ton	kN	ton
6	3/4	18	4	35	3.5	31	3.2
8	1	34	8	64	6.6	58	5.9
10	1-1/4	55	12	101	10.3	91	9.3
12	1-1/2	83	18	150	15.3	135	13.8
14	1-3/4	110	24	197	20.1	177	18.1
16	2	130	29	230	23.5	207	21.1
18	2-1/4	184	40	322	32.9	290	29.6
20	2-1/2	227	50	384	39.2	346	35.3
24	3	324	71	533	54.4	480	49
28	3-1/2	444	98	704	71.9	634	64.7
32	4	589	130	918	93.7	826	84.3
36	4-1/2	720	158	1104	112.7	994	101
40	5	880	194	1329	135.6	1196	122
42	5-1/4	979	215	1459	148.9	1313	134
44	5-1/2	1078	237	1589	162.1	1430	146
46	5-3/4	1171	258	1698	173.2	1528	155.9
48	6	1264	278	1807	184.4	1626	166
50	6-1/4	1388	305	1971	201.1	1774	181
52	6-1/2	1512	333	2136	217.9	1922	196.1
54	6-3/4	1636	360	2300	234.7	2070	211.2
56	7	1760	387	2464	251.5	2218	226
58	7-1/4	1885	415	2622	267.6	2360	240.8
60	7-1/2	2010	442	2778	283.4	2500	255.1
62	7-3/4	2135	470	2936	299.5	2642	269.6
64	8	2260	497	3092	315.5	2783	284
66	8-1/4	2423	533	3293	336.1	2964	302.5
68	8-1/2	2585	569	3496	356.7	3146	321
70	8-3/4	2748	605	3697	377.2	3327	339.5
72	9	2910	640	3898	397.7	3508	358
74	9-1/4	3065	674	4080	416.3	3672	374.7
76	9-1/2	3220	708	4263	435	3837	391.5
78	9-3/4	3375	743	4444	453.5	4000	408.2
80	10	3530	777	4628	472.2	4165	425

Competitive Advantage

· Stronger: with a same diameter, the strength of hmpe mooring rope is stronger than that of wire rope.

· Lower elongation: their breaking elongation is close to that of wire rope.

· Lighter: with a same strength, their weight(g/m) is only 1/8 of wire rope.

· Material: UHMWPE

· Chemical resistance: good

· Dry and wet conditions: wet strength equals dry strength

· Non-rotating and anti-kinking, longer service life

· Easy to handle, inspect and repair
